| Brand Name: | MONOLUXTECS |
| Model Number: | TT07 |
| MOQ: | 50PCS |
| Price: | CN¥18/pcs |
| Packaging Details: | Carton, PE, Customized |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

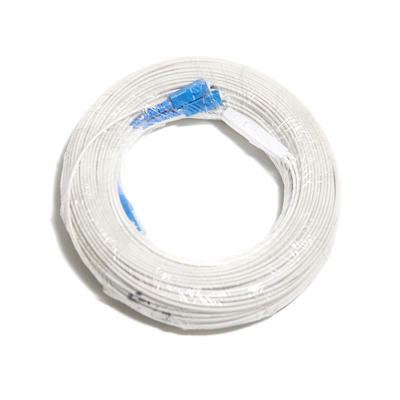

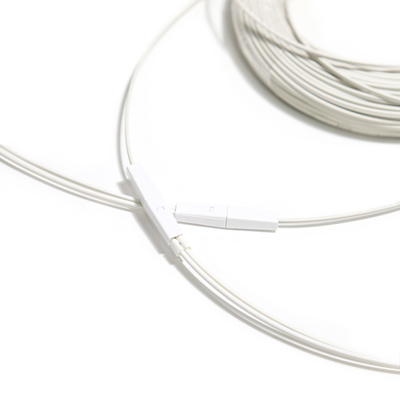

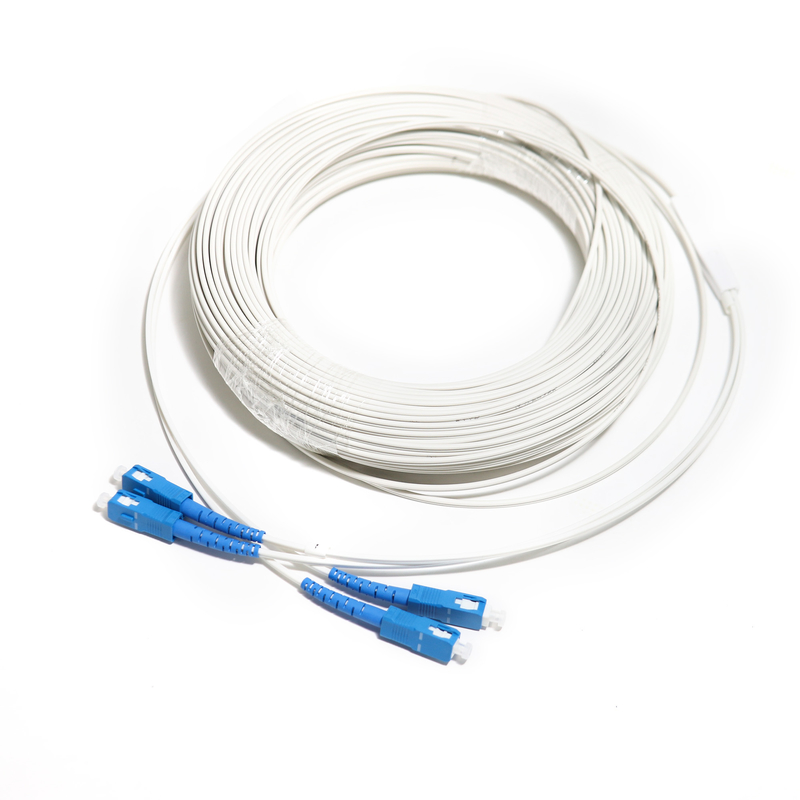

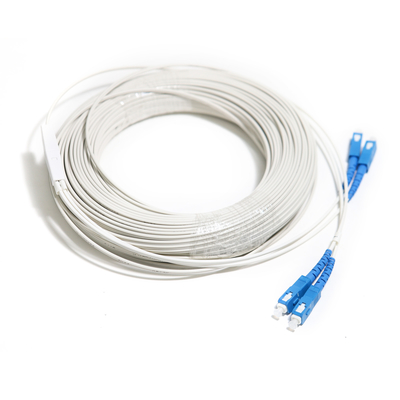

FC&FC Blue Cord Port 5M Duplex Optical Cable Patch Cord Simplex SM FTTH 3M 5M
Anti-rodent fiber optic cable is built in a stainless steel cover that can protects the jumper cable from open circuits, short circuit, and other damage due to rats in restaurants, fast food establishments, shops, warehouses, and so on.
With FC to SC connectors, this fiber patch cable is ready for deployment in any single-mode 9/125 network. Singlemode 9/125 are best used for long cable runs. This singlemode fiber cable is comprised of optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. It has a yellow, riser rated, PVC, zipcord jacket.
Specification:
Connector type: SC to SC
Fiber type: Single mode
Insertion Loss:<0.3dB
Operating Wavelength:1310nm-1550nm
Cable diameter:3mm
Minimum bend radius:3.8cm
Plug: ceramic ferrule
Material:PVC,Stainless Steel
Insertion and removal times: >1000 times
Working temperature: -40°C~85°C
Tensile strength: ≥200N
Vibration : <0.1db
Jacket: OFNR (Riser-Rated)
Features:
Low insertion loss and back reflection loss
Good repeatability
Good exchangeability
Good Durability
Interpolation performance is good
High temperature stability
Immune to Electrical Interference
100% Optically Inspected and Tested for Insertion Loss
Application:
Optical LAN
Optical fiber communication systems
Test equipment
Fiber CATV
Fiber Network Deployments
Fast Ethernet
Gigabit Ethernet
Other Data Applications Requiring High Transfer Rates
|
