| Brand Name: | MONOLUXTECS |
| Model Number: | TS0812 |
| MOQ: | 100PCS |
| Price: | Negotiation |
| Packaging Details: | Carton, PE, Customized |
| Payment Terms: | T/T, L/C, D/A, Western Union, MoneyGram |

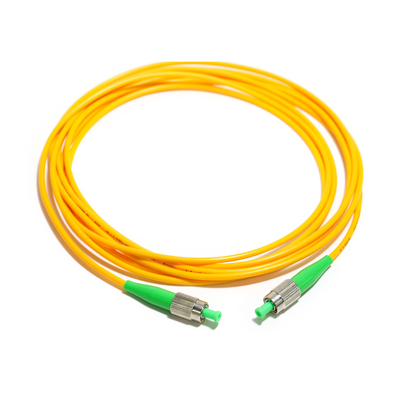

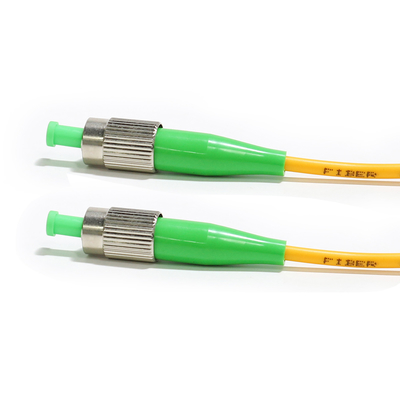

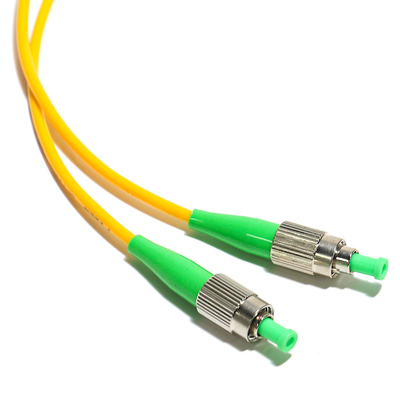

ST/2 Single Mode Yellow Port Fiber Optic Patch Cord Supplier For LAN WLAN Network 2M 3M
About this optical fiber patch cord:
❤ High-quality laser-optimized Network OM3 10gb 50/125 Multimode double ST port Fiber Patch Cable is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
❤ SU UPC Fiber Patch Cable (OM3) LOMMF connects to 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10Gb networks.
❤ This OM3 duplex fiber optic cable conforms to ITU-T G.651.1, TIA/EIA 492AAAC and IEC60793-2-10 A1a.2a standards and complies with all RoHS environmental specifications.
❤ Plated with LZSH out cover sheath, better protect inside optical core from dust and anti-oxidiation.
| Conector | PC(SM) | UPC(SM) | APC(SM) | PC(MM) |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss(dB) | ≤0.2(Typical)≤0.3(Max) | |||
| Repeatability(dB) | ≤0.1 | |||
| Durability(times) | ≥1000 | |||
| Operating Temperature(℃) | -100 ~ +80 | |||
| Tensile Strength(N) | ≥90(φ3)≥70(φ2) |
Q&A
Q1: When can I get the quotation back?
|
|
