Brand Name: | Monoluxtecs |
Model Number: | STA1001B |
MOQ: | 100pcs |
Price: | Negotiable |
Packaging Details: | 40*40*35cm |
Payment Terms: | L/C, D/A, T/T, Western Union |

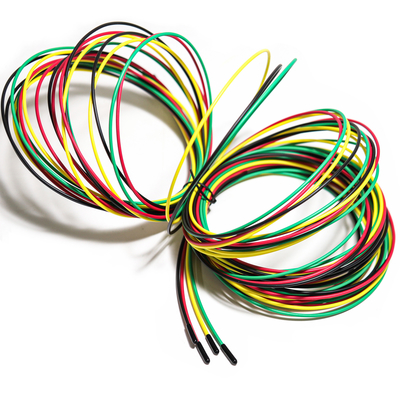

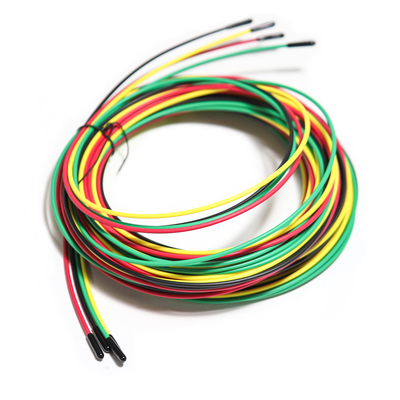

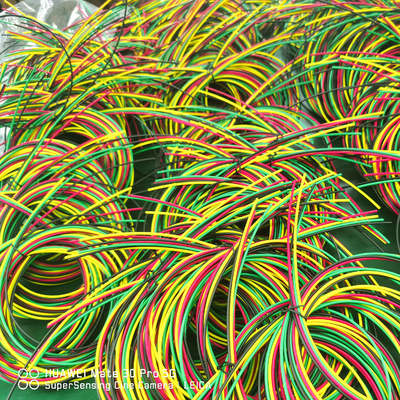

[Factory Supply] Fault Indicator Optic PMMA OD2.2 Muti-Core X4 5M For Industrial Optic Cable, Machine Equipment
About this item:
Inner PMMA Diameter 1.0 And Outer Diameter 2.2mm, Failure Indicator
Basic principles:
❤ Short circuit principle: When the circuit has a short circuit fault, the short circuit sensor senses the fault current, and at the same time converts this signal into a data signal and sends it to the host, then the two-phase short circuit fault indicator on the host panel is on, showing the line where the fault occurred.
❤ Grounding principle: The grounding part is based on the detection of the zero-sequence current of the line. When a ground fault occurs in the system, if the grounding indicator on the panel is on, it indicates that the cable system has a grounding fault.
Application:
❤ fault indicator Indicator light shows bus grounding, single-phase short circuit detection, snap ring fixing
❤ belt hoop Installation location Power distribution equipment in power systems, oil fields, chemicals, steel mills, railways and other cable systems.
Features:
◆ Light weight.
◆ Good toughness 145.
◆ Flexible transmission seismic and crack resistance is strong.
◆ Durable, reliable and waterproof.
◆ Moistureproof.
◆ Magnetically.
◆ Lightning protection saves copper resources.
◆ Low carbon, energy saving and environmental protection coupling.
◆ Strong light conduction ability without electromagnetic radiation.
◆ No electrical noise.
model | diameter(mm) | out diameter(mm) | jacket | attenuation(dB/km) | hole ampeture | temperature scope | standard length |
QH-250-e | 0.25 | 1.0±0.05 | black PE | ≤200 | 0.5 | -50~+70 | 1000 |
QH-500-1 | 0.5 | 1.0±0.05 | black PE | ≤200 | 0.5 | -50~+70 | 1000 |
QH-750-1 | 0.75 | 2.2±0.06 | black PE | ≤200 | 0.5 | -50~+70 | 2500 |
QH-1000-1 | 1 | 2.2±0.06 | black PE | ≤200 | 0.5 | -50~+70 | 1000/1500 |
QH-1500-1 | 1.5 | 3.0±0.07 | black PE | ≤200 | 0.5 | -50~+70 | 700 |
QH-2000-1 | 2 | 3.8±0.07 | black PE | ≤200 | 0.5 | -50~+70 | 350 |
QH-3000-1 | 3 | 4.0±0.07 | black PE | ≤200 | 0.5 | -50~+70 | 150 |
