| Brand Name: | monoluxtecs |
| Model Number: | TS008 |
| MOQ: | 100PCS |
| Price: | negotiable |
| Packaging Details: | Custom packaging、PE bag |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |

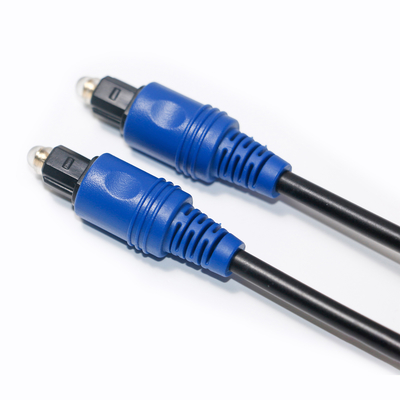

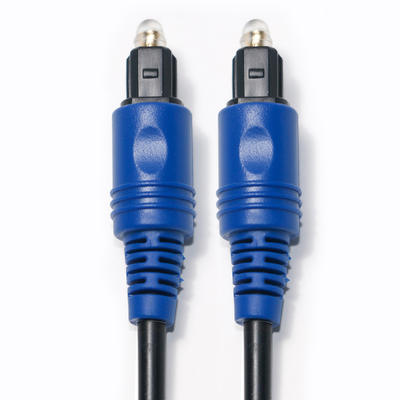

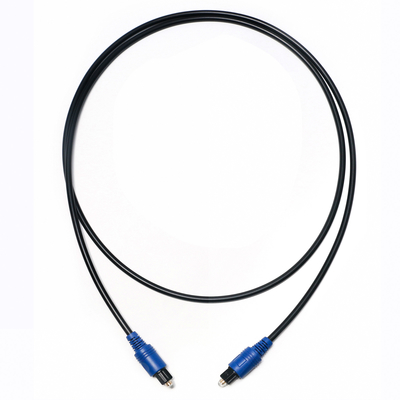

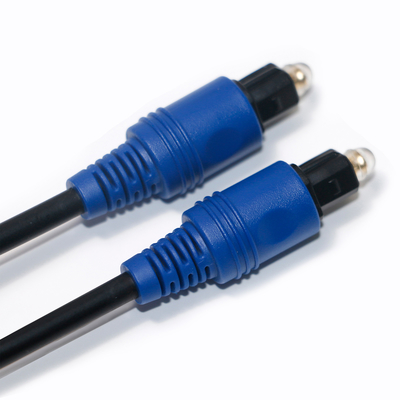

Factory Price Brand New Toslink Digital Optical Fiber Cable PVC Rope Plated Blue Shell HiFi Sound 1.5M/2M/3M
About this item:
❤ Optical digital audio cable: Perfect, crystal-clear digital audio for DVDs, Blu-rays, home theater systems, receivers, satellite TV, online streaming, PlayStation 4 Xbox One gaming systems. Home theater
TOSLINK: Professional cable works with multi-channel surround sound, uncompressed PCM audio and compressed 5.1 to 7.1 surround sound systems including Dolby Digital Plus, DTS-HD High Resolution and LPCM.
❤ Highest quality digital audio cables: Optical cables feature a fully flexible PVC jacket with precision manufacturing to provide the highest quality, longest lasting optical cables available.
❤ Metal-plated connectors: Corrosion resistant gold plating keeps connectors clean. And because these cables are fiber optic, they are immune to RFI or EMI signal interference.
Parameters:
◆ Name: TOSLINK Audio Optical Cable
◆ Brand: monoluxtecs
◆ Color: Knited rope with Golden interface
◆ Core diameter (mm):Ø1.0
◆ Wire diameter (mm):Ø5.0
◆ Exterior:Black PE coating
◆ Operating temperature:-55℃～+70℃
◆ Connector model: Tosllink connector is connected to the clamping structure
◆ Transmission loss (wavelength: 650nm) 180～200dB/km
◆ Insertion loss (wavelength: 650nm) Max: 1.0db Interchangeability Max: 1.0db (random transformation)
◆ Minimum bending radius:25mm
◆ Tensile strength:Max: 1.0dB (0～70N)
◆ Vibration test: Max: 1.0dB (5～50Hz, 1.5mm amplitude)
Parameters
| Parameter | Unit | Numerical value |
| Fiber optic core diameter | mm | Φ1.0;customized acceptΦ0.25,Φ0.50,Φ0.75 |
| Fiber optic core material | --- | PMMA |
| Finished product diameter | mm | Φ2.2;customized acceptΦ2.2mm-10.0mm |
| Outer material | --- | Antiflaming CPE,Antiflaming PE, Antiflaming PVC,Nylon PA,TPU,TPR |
| Outer color | --- | Black ;customized accept other colors |
| Application lighwave | nm | 650 or 530 |
| Attenuation | dB/km | <180 refraction |
| Refractive index | --- | SI |
| Bend radius | --- | 5xcore Diameter |
| Numerical aperture (N.A) | --- | 0.5;customized accept 0.3-0.6 |
| Incident angle | --- | 60° |
| Splice loss | dB | <0.5 |
| Tensile strength | N | ≤1.0dB(0~80N) |
| Vibration | --- | ≤1.0dB(5~50HZ,1.5mm amplitude) |
| Working temperature | °C | -55°C~+85°C |
| Storage temperature | °C | -55°C~+85°C |
| Quality standard | --- | Europe ROHS,USA standard(SONET.OC-48),Japan standard(G.653),China industry standard(YD/T1447-2006) |
Q&A
Q:Are you trade company or factory?
A: Actually we're manufacturer professional in FTTH drop cable, RCA cable, toslink, digital audio cable,audio cable etc. our product 100% tested. We have been many years experience in this field. We are the prefessional supplier that you can trust.
Q:Do you have any certification?
A: We do have certification. our company have certificated ISO9001, our optical fiber with 14001 test, audio cable with RoHs, Certification for CE and senior member of audio Association so on.
Q:What is your quality control for your fiber optic product ?
Firstly Source Guarantee: We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
Secondly Quality Test: It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
Thirdly Product Protect Process: We have 30% spot test by Quality Assurance Department after the products finished.
Q:Why choose us?
A: We're high-quality digital audio cable suppliers, we own 2 factories in China so we got low product price advantage. we offering lower price cost products and service delivery, adhering to the purpose of making customers worry-free, wholehearted and thoughtful service, made merchandise more all wool and a yard wide.
|
|
