TOSLINK Optical Audio Cable
>

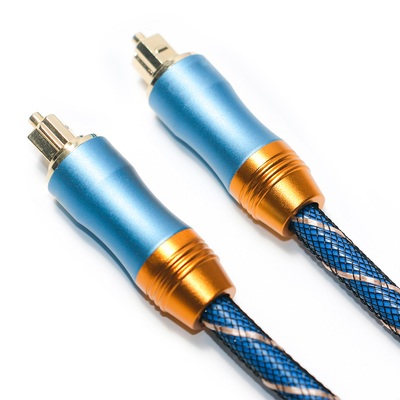

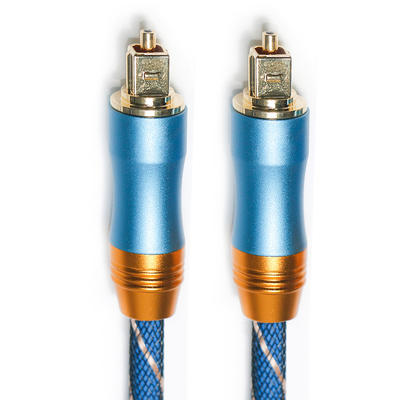

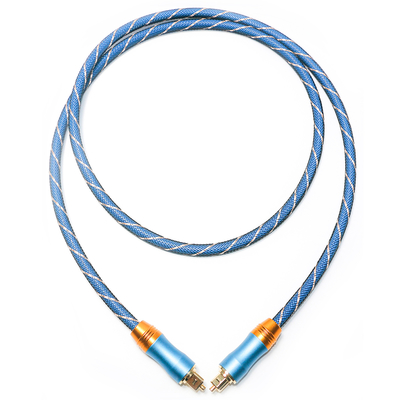

Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer

Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer

Brand Name: monoluxtecs
Model Number: TS00511
MOQ: 1000PCS
Price: negotiable
Packaging Details: Custom packaging、PE bag
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Detail Information
Place of Origin:
CHINA
Certification:
SGS/REACH
Keyword:
Toslink Fiber Optic Audio Cable
Application:
OUTDOOR
Certification:
SGS/REACH
Color:
Black
Name:
Audio Plastic Optical Fiber Cable
OD:
6.0 Mm
Type:
Coaxial
Length:
1M Or Customize
Product Name:
Digital Audio Toslink Fiber Optical Cable
Jacket:
PVC
Oem:
Available
Connector Type:
Toslink
Packing:
Polybag
Function:
Delivery Signal Light
Shielding:
PVC,Braid
Supply Ability:
1W / Days
High Light:

Toslink Audio Plastic Optical Cable

,

OD6.0 Plastic Optical Cable

,

OD6.0 plastic fiber optic

Product Description

Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer



About this item:

❤ Optical fiber transmission, better sound quality.
❤ The flexible cable body optical fiber transmits digital signals in the form of light beam, which is not interfered by electromagnetic and noise, no noise, the cable body is soft and resistant to bending, and the bending does not affect the transmission sound quality and clearer.
The dust cap protection connector is specially made by micro convex lens technology, the 650 nanometer red beam is highly focused, the signal transmission is ultra-low loss, the sound quality is clearer, rust, dust and other phenomena, so that the cable has a longer service life.



Parameters:

◆ Name: TOSLINK Audio Optical Cable

◆ Brand: Monoluxtecs

◆ Color: Blue

◆ Core diameter (mm): Ø1.0

◆ Wire diameter (mm): Ø6.0

◆ Exterior: Knited texture pattern coating

◆ Operating temperature: -55℃~+70℃

◆ Model:Tosllink connector is connected to the clamping structure

◆ Transmission loss (wavelength: 650nm) 180~200dB/km

◆ Insertion loss (wavelength: 650nm) Max: 1.0db Interchangeability Max: 1.0db (random transformation)

◆ Minimum bending radius: 25mm tensile strength:Max: 1.0dB (0~70N)

◆ Vibration test: Max: 1.0dB (5~50Hz, 1.5mm amplitude)





The reason why Choose us:

On time delivery

 Customization

 Factory outlet

◆ Micro convex lens technology.

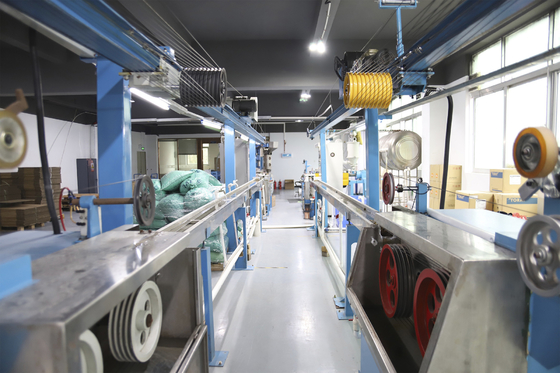

 Large product inventory with massive production line

 China's professional gas detection leader

 Quality guarantee



Parameter Unit Numerical value
Fiber optic core diameter mm Φ1.0;customized acceptΦ0.25,Φ0.50,Φ0.75
Fiber optic core material --- PMMA
Finished product diameter mm Φ2.2;customized acceptΦ2.2mm-10.0mm
Outer material --- Antiflaming CPE,Antiflaming PE, Antiflaming PVC,Nylon PA,TPU,TPR
Outer color --- Black ;customized accept other colors
Application lighwave nm 650 or 530
Attenuation dB/km <180 refraction
Refractive index --- SI
Bend radius --- 5xcore Diameter
Numerical aperture (N.A) --- 0.5;customized accept 0.3-0.6
Incident angle --- 60°
Splice loss dB <0.5
Tensile strength N ≤1.0dB(0~80N)
Vibration --- ≤1.0dB(5~50HZ,1.5mm amplitude)
Working temperature °C -55°C~+85°C
Storage temperature °C -55°C~+85°C
Quality standard --- Europe ROHS,USA standard(SONET.OC-48),Japan standard(G.653),China industry standard(YD/T1447-2006)



Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer 0Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer 1



Q&A

Q:Are you trade company or factory?

A: Actually we're manufacturer professional in FTTH drop cable, RCA cable, toslink, digital audio cable,Hdmi cable etc. our product 100% tested. We have been many years experience in this field. We are the prefessional supplier that you can trust.



Q:Do you have any certification?

A: We do have certification. our company have certificated ISO9001, our optical fiber with 14001 test, audio cable with RoHs, Certification for CE and senior member of HDMI Association so on.



Q:What is your quality control for your fiber optic product ?

Firstly Source Guarantee: We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
Secondly Quality Test: It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
Thirdly Product Protect Process: We have 30% spot test by Quality Assurance Department after the products finished.



Q:Why choose us?

A: We're high-quality digital audio cable suppliers, we own 2 factories in China so we got low product price advantage. we offering lower price cost products and service delivery, adhering to the purpose of making customers worry-free, wholehearted and thoughtful service, made merchandise more all wool and a yard wide.



Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer 2
