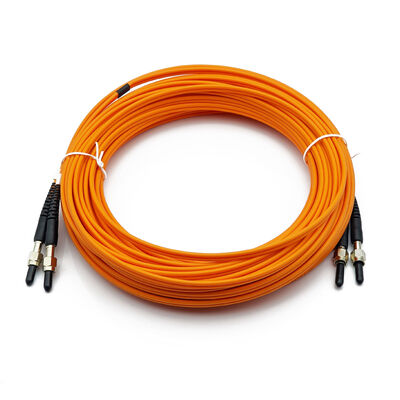

SMA905 Fiber Optic Cable Assemblies

SMA905 fiber optic cable assemblies are available with POF, HCS/PCF and multimode silica fiber for industrial equipment, spectroscopy, illumination, sensing and optical instrument applications.

We supply standard and custom SMA905 cable assemblies with configurable fiber type, core size, numerical aperture, wavelength range, cable length, jacket structure and connector combination. SMA905-to-SMA905 and hybrid termination options are available for OEM, replacement, small-batch and project-specific requirements.

Available SMA905 Fiber Options

SMA905 POF Cable Assemblies

POF SMA905 assemblies are suitable for industrial applications requiring a large fiber core and flexible cable construction.

Mitsubishi ESKA SK-40 is available as a POF option with:

• 980/1000 µm fiber size

• NA 0.5

• 650 nm reference wavelength

• 2.2 mm simplex cable

• 2.2 × 4.4 mm duplex cable

PVC, PE and LSZH jacket options can be configured according to the installation environment. Cable color, marking, length and structure can also be customized.

SMA905 HCS / PCF Cable Assemblies

HCS/PCF SMA905 assemblies are available for industrial equipment and specialized optical systems requiring a smaller core than typical 1 mm POF.

A 200/230 µm configuration is commonly used for industrial applications, while other core sizes can be supplied according to the equipment and project requirements.

SMA905 Multimode Silica Cable Assemblies

Multimode silica SMA905 assemblies are suitable for spectroscopy, optical instruments, illumination and measurement systems.

Core diameter, numerical aperture and wavelength range are selected according to the light source, optical system and transmission requirements.

Connector and Cable Configuration Options

SMA905 cable assemblies can be supplied in different connector and cable combinations, including:

• SMA905 to SMA905

• SMA905 to FC

• SMA905 to ST

• SMA905 to ferrule or custom equipment-side termination

• Simplex or duplex construction

• PVC, PE or LSZH jacket

• Reinforced or mechanically protected cable

• Custom cable length and outer diameter

• Custom labeling, marking and packing

Configurations can be matched to the optical interface and physical installation requirements of the equipment.

Termination and Quality Control

SMA905 cable assemblies can be processed with controlled:

• Fiber cutting

• End-face preparation and polishing

• Cleaning

• Connector assembly

• End-face inspection

• Optical verification according to project requirements

Our termination capability supports custom POF, HCS/PCF and silica fiber assemblies for equipment-specific requirements.

Applications

SMA905 fiber optic cable assemblies can be configured for:

• Industrial automation equipment

• Control systems

• Optical sensors

• Spectroscopy systems

• Optical instruments

• Illumination systems

• Measurement equipment

• OEM optical assemblies

• Replacement and maintenance cables

For laser or higher-power applications, the fiber, connector structure and end-face design must be evaluated separately. Standard SMA905 cable assemblies should not be assumed suitable for high-power energy delivery.

Custom SMA905 Cable Assemblies

We support customized SMA905 assemblies based on project requirements.

Available customization includes:

• Fiber type

• Core and cladding size

• Numerical aperture

• Cable length

• Cable outer diameter

• Jacket material

• Simplex or duplex construction

• Connector combination

• Mechanical protection

• Labeling and cable marking

• Packing

• Inspection and testing requirements

POF projects can also use customized jacket extrusion and cable structures. HCS/PCF and multimode silica assemblies can be supplied through precision fiber termination and project-specific sourcing.

For RoHS, REACH or other compliance requirements, applicable documentation should be confirmed according to the actual fiber, connector, jacket and finished cable configuration.

Contact us for a custom SMA905 fiber optic cable assembly matched to your equipment and project requirements.
