| Brand Name: | monoluxtecs |
| Model Number: | QH-TP141 |
| MOQ: | 100PCS |
| Price: | negotiable |
| Packaging Details: | Custom packaging、PE bag |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |

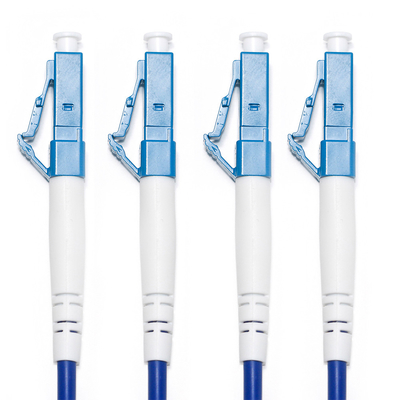

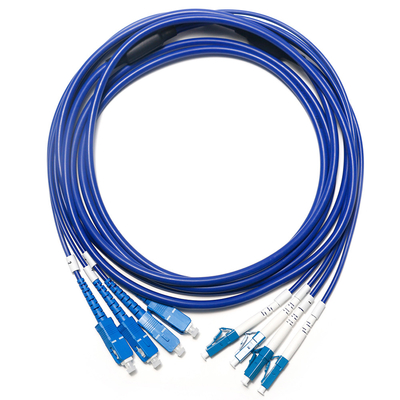

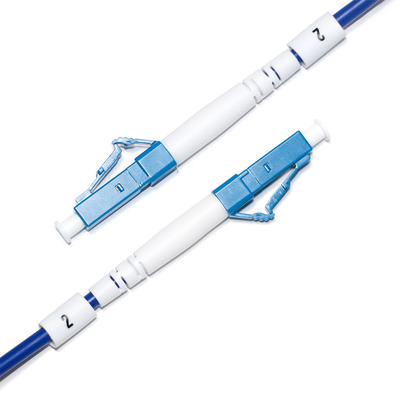

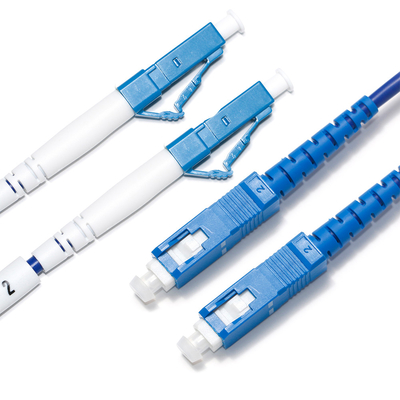

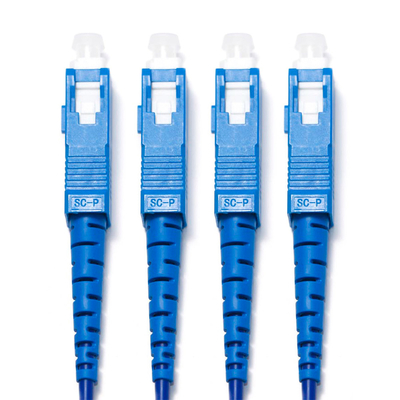

SC LC Fiber Optic Patch Cord Multimode Dual-Core OM3 4/4 10G
Features:
Small bending radius and excellent flexibility to meet the environment of fiber to the home and all kinds of indoor wiring.
Stable performance, good compressive strength, tensile strength, anti-aging properties.
Small diameter, light weight, strong practicability.
G657A class optical fiber or customized, cost-effective, stable parameter.
Patch cord & Pigtail
|
Operating temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Atmospheric pressure |
70~106KPa |
|
Wavelength |
850nm,1310nm,1550nm |
|
Insertion loss |
≤0.3dB |
|
Return loss |
PC≥45dB, UPC≥50dB, APC≥60dB |
|
Repeatability |
≤0.2dB |
|
Interchange ability |
≤0.2dB |
Meets YD/T826(FC/PC), YD/T896(FC/APC),YD/T1272.1(LC) ,YD/T895(SC) YD/T987(ST)
Armored patch cord:
|
Attenuation |
≤0.4dB/km(SM1310nm)≤0.4dB/km(SM1550nm) |
|
The thickness of the sheath |
≥0.4mm |
|
Allowable bending radius |
30mm |
|
Tensile resistance |
≥200N |
|
Crush resistance |
≥3000N/100mm |
|
Return loss |
PC≥45dB, UPC≥50dB, APC≥60dB |
|
Repeatability |
≤0.2dB |
|
Interchange ability |
≤0.2dB |
|
