SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter

MOQ: 100PCS
Price: negotiation
Standard Packaging: Customized
Delivery Period: UP 15 DAY
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 1000PCS + 1 WORK DAYS
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen
Brand Name
monoluxtecs
Certification
Rohs
Model Number
QH-8541
Number Of Conductors:
12
Product Name:
Planar Lightwave Circuit Splitter
Fiber Type:
ITU- G657A1 Or Customer Specified
Operating Temperature:
-40~+85
Application:
FTTH
Certification:
ISO9001/CE/ROHS
Type:
Single-Mode Or Multi-Mode
Color:
Aqua
Fiber Count:
1/2/4 Core
Package:
Plastic Bag
Sheath:
PVC
Jacket:
LSZH PVC
Highlight:

SC APC Fiber Optic Pigtail

,

12core Fiber Optic Pigtail

,

1.5M Fiber Optic Pigtail

Product Description

SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter



Product Attributes:

A patchcord is a fiber optic cable used to attach one device to another for signal routing.

Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.

SC stands for Subscriber Connector- a general purpose push/pull style connector.

It is a square, snap-in connector latches with a simple push-pull motion and is keyed.

Features:
1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional

Applications:
1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation

Specifications:
Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (db) ≥45 ≥50 ≥60 ≥35
Insertion Loss (db) ≤0.2 (max≤0.3)
Repeatability (db) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

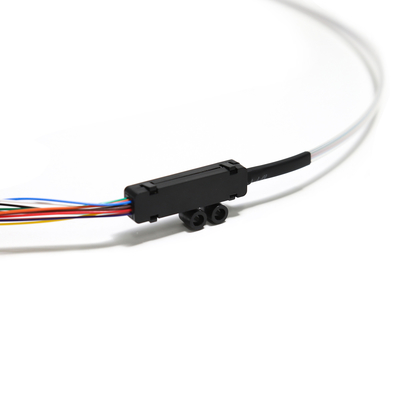

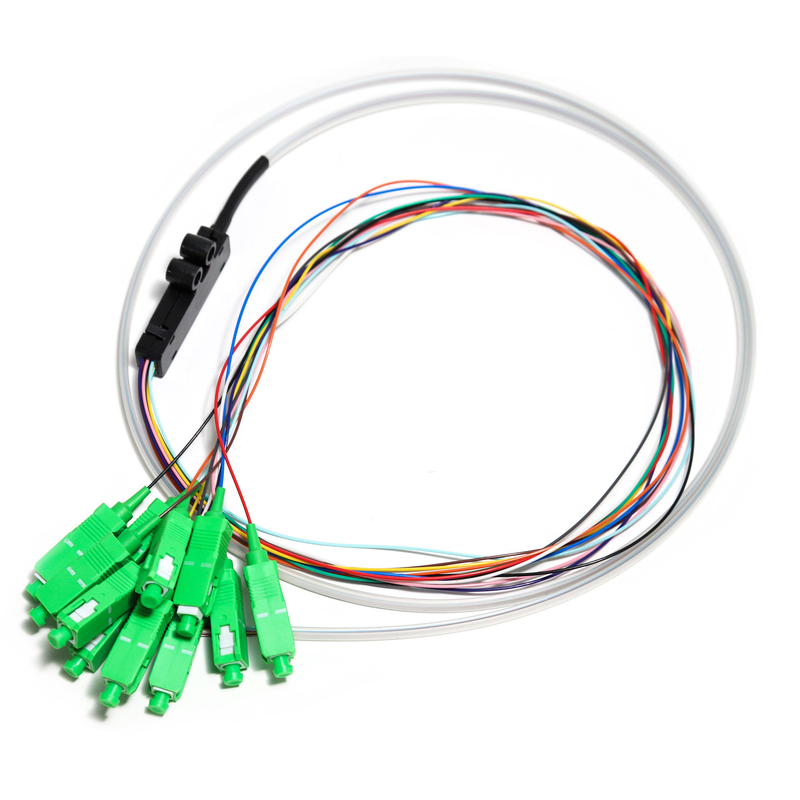

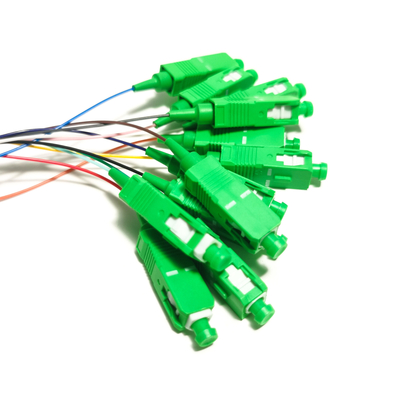

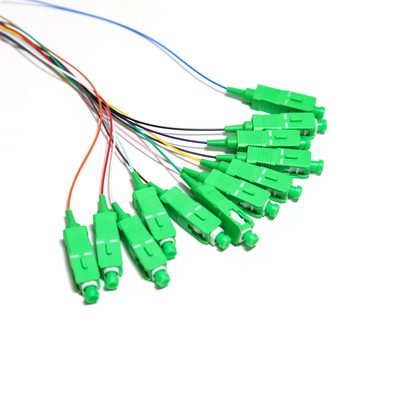

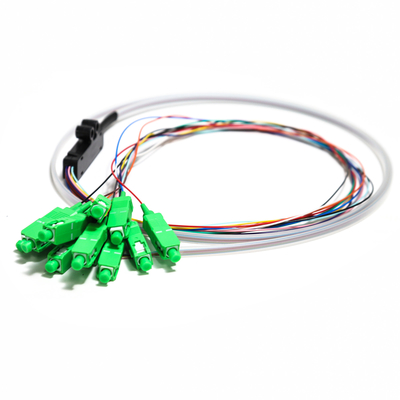

SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter 0SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter 1SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter 2SC APC 12core Fanout Fiber Optic Pigtail SM Simplex 1.5M Optical Fiber Pigtail /Planar Lightwave Circuit splitter 3
