Fiber Optic Patch Cord

10G LC-ST Duplex Multimode Fiber Optic Cord OD3.0 OM3 0.8M 1.5M 2M For WLAN LAN

All Category

Optical Fiber Converter

Vincent

vincent.cai@metafiber.com

13510945163

Contact Now

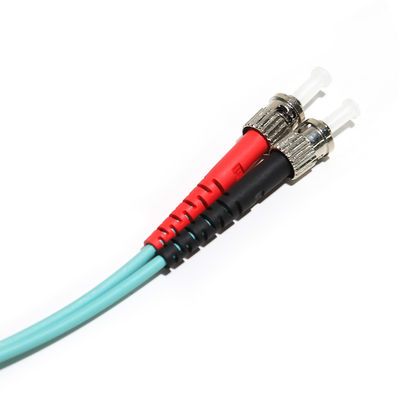

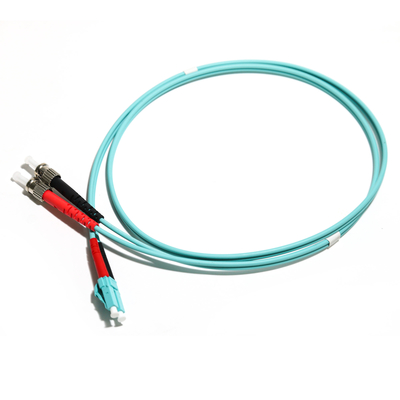

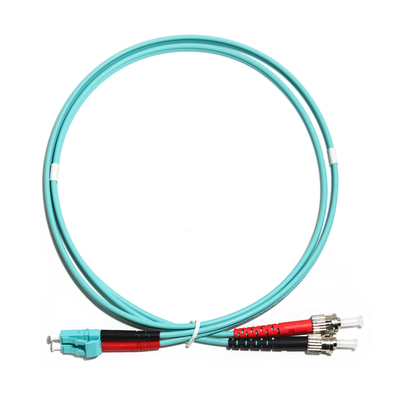

10G LC-ST Duplex Multimode Fiber Optic Cord OD3.0 OM3 0.8M 1.5M 2M For WLAN LAN

Name: 10G LC-ST Duplex Multimode Fiber Optic Cord OD3.0 OM3 0.8M 1.5M 2M For WLAN LAN
Brand: MONOLUXTECS
SKU: TS0813
Rating: 4.7 (156 reviews)

Brand Name:	MONOLUXTECS
Model Number:	TS0813
MOQ:	100PCS
Price:	Negotiation
Packaging Details:	Carton, PE, Customized
Payment Terms:	T/T, L/C, D/A, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

Rohs, ISO9001

Colour:

Wathet

Outer Diameter:

3.0MM

Connector Type:

Fiber Patch Cord

Packing:

Polybag

OEM ODM:

3/4/5

Application:

Multimode Mode

Lenghth/weight:

1m(16g)

Fiber Type:

Duplex

Length:

1m 2m 3m Or Customized

Insertion Loss:

≤0.3dB

Connector:

LC/ST

Material:

LSZH

Return Loss:

≧65 DB

Color:

Blue

Item:

Optical Fiber Patch Cord

Polish:

LC/ST

Real Factory:

Yes

Supply Ability:

5K pcs /days

High Light:

Duplex Multimode Fiber Optic Cord

10G LC-ST Fiber Optic Cord

OM3 0.8M Fiber Optic Cord

Product Description

10G LC-ST Duplex Multimode Fiber Optic Cord OD3.0 OM3/OM4/OM5 0.8M 1.5M 2M For WLAN LAN

About this optical fiber patch cord:

❤ This ST to LC patch cord is a certain length of fiber optic cable (lengths can be customized) with a LC fiber connector on one end and a ST fiber connector on the other end (two connectors in total). The cable sheath material is low smoke and halogen free flame retardant.

❤ High-quality laser-optimized Network OM3 10gb 50/125 Multimode double ST port Fiber Patch Cable is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.

❤ 2LC ST Fiber Patch Cable (OM3) LOMMF connects to 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10Gb networks.

❤ Plated with LZSH out cover sheath, better protect inside optical core from dust and anti-oxidiation.

About customize term:

Customized: logo( Min. order 3000 pieces)

Customized packaging:( Min. order 3000 pieces)

Characteristic

❤ Ceramic insert included

❤ Green production, ROHS standard

❤ Excellent polish and 100% tested

❤ High stability for various environments

Deliver date

Quantity (pieces)	1 - 3000	3001 - 5000	5001 - 10000	> 10000
Lead time (days)	5	7	10	To be negotiated

Paremeter	Unit	Index
Connector Type	/	PC(SM)	UPC(SM)	APC(SM)	PC(MM)
Return Loss	dB	>45	>50	>60	>35
Insertion Loss	dB	<0.2
Repeatability	dB	<0.1
Interchangeability	dB	<0.2
Connection Durability	times	>500(non-metal), >1000(Metal)
Operating Temperature	℃	-25~75

10G LC-ST Duplex Multimode Fiber Optic Cord OD3.0 OM3 0.8M 1.5M 2M For WLAN LAN 0

Q&A

Q1: When can I get the quotation back?

A: Generally, quotes will be replied within 24 hours or faster(weekends not included),however, a few of days would be taken for special ones.

Q2: How about the cable's quality ?

A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.

Q3: How do l assure that you are a reliable supplier?

A: as a fiber optic patch cord supplier we professional in FTTH drop cable, PMMA cable a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.

and our company have certificated ISO9001, our optical fiber with 14001 test, audio cable with RoHs, Certification for CE so on.

Q4: Could the OEM be accepted and what's the MOQ?

A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
