MPO-8FC OM3 Fiber Optic Fanout Patch Cable – 8-Core MPO to FC Breakout

MOQ: 50PCS
Price: CN¥38.8 - CN¥59.6/PCS
Standard Packaging: Carton, PE, Customized
Delivery Period: UP 15 DAY
Payment Method: L/C,T/T,Western Union,MoneyGram
Supply Capacity: 1000PCS/days
Detail Information
Product Description
Detail Information
Place of Origin
SHENZHEN,CHINA
Brand Name
RUIARA
Certification
Rohs, ISO9001
Model Number
MPO-8FC
Fiber Type:
OM1/OM2/OM3/OM4/OS2
Application:
Data Centers, High-density Fiber Networks
Outer Diameter:
3.0mm
Product Name:
MPO-8FC Fiber Patch Cable
Polishing Type:
PC, UPC, APC
Connector A:
MPO/MTP Male/Female
Jacket Material:
LSZH / PVC / OFNP
Cable Length:
1m, 2m, 3m, 5m, 10m, Customized
Highlight:

Blue Hybrid Trunk Cable

,

MTP/MPO Hybrid Trunk Cable

Product Description

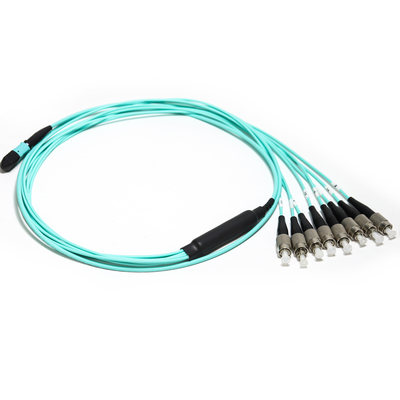

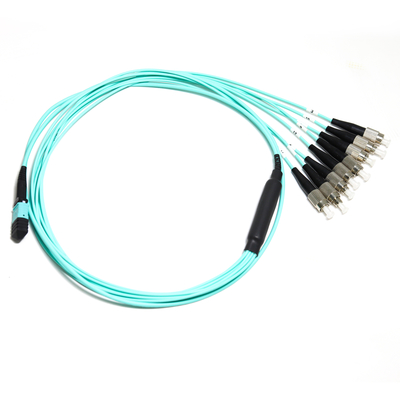

MPO-8FC OM3 Fiber Optic Fanout Patch Cable – 8-Core MPO to FC Breakout


Product Overview

The MPO-8FC OM3 fanout patch cable is designed for high-density and high-performance optical networks that require reliable breakout connectivity from an 8-core MPO interface to eight individual FC connectors.
Using OM3 50/125μm multimode fiber, this assembly delivers low-loss, stable transmission for data centers, industrial automation, test systems, and high-speed backbone connections.

Manufactured with precision ferrules and high-quality fiber components, Ruiara MPO-8FC OM3 cables ensure excellent insertion-loss performance, long-term durability, and consistent optical performance across all channels.



Features

Ø Lower Insertion Loss & Higher Performance

Ø Low IL and stable signal transmission ensuring your network safety

Ø High-quality MTP connectors and guaranteed by 3D interferometer

Ø 100% factory tested



Specifications


Connector A

MPO (Female)

Connector B

FC UPC (8)

Fiber Mode

50/125μm OM3

Cable Diameter

3.0mm

Fiber Count

8

Wavelength

850nm

Breakout Length

0.5m

Cable Diameter

3 mm round trunk, 2.0 mm tails

Cable Jacket

LSZH

Insertion Loss

 MPO≤ 0.35 dB

Jacket Color

Aqua

Return Loss

MPO≥60 dB, FC≥50dB

Operate Temperature

-40~75°C

Durability

 ≥500 times



Applications

Ø QSFP to SFP+ Connection

Ø QSFP+ to SFP+ Connection

Ø PSM4 to SFP+ Connection

Ø 40GE to 10GE Interconnection

Ø 400G to 100G Interconnection



How to choose correctly the cable jacket: PVC, LSZH or OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
Ø PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
Ø LSZH cable has a special flam-retardant coating, it is between floors in a building.
Ø OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.
