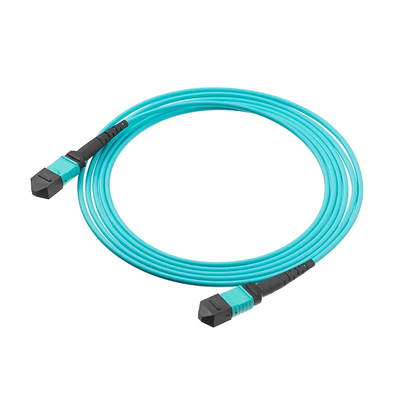

50/125 MTP MPO Fiber Optic Patch Cord OM3/OM4 8/12/24F G657A1 12C 24C For Telecom

Manufacturing Om3/om4 8/12/24f G657a1 12c 24c Senko Us Conec 50/125 Mtp Mpo Fiber Optic Patch Cord

• MPO/MTP patch cord,MPO (Multi-fiberPushOn) connector is one of the MT series connectors, MT series ferrule uses two left and
  right guide holes and guide pins with diameters of 0.7mm (also called PIN pin) for precise onnection. MPO connectors and fiber
  optic cables can be processed to produce various forms of MPO jumpers. MPO jumpers can have 2 to 12-core designs, with a maximum
  of 24 cores. The 12-core MPO connector is currently the most used. The compact design of the MPO connector enables a large number
  of MPO jumper cores and small size. MPO jumpers are widely used in the connection process that requires high-density integrated
  fiber-optic line environments during wiring, FTTX and transceiver modules such as 40 / 100GSFP, SFP +, or inside and outside the
  equipment.
