12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable

Brand Name: Ruiara
Model Number: TS0026
MOQ: 50PCS
Price: Negotiable
Packaging Details: Carton, PE, Customized
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detail Information
Place of Origin:
Shenzhen
Certification:
SGS/REACH
Model Number:
MPO/PC- OM4 Fiber Patch Cord
Connector:
MPO/PC
Material:
LSZH
Product Name:
Optical Patch Chord
Fiber Count:
12 Core
Length:
3m, 5m, Or Customized
Connector A:
MPO/MTP Male/Female
Cable Jacket:
OFNR, OFNP, PVC, LSZH
Outer Sheath Material:
Outer Sheath Material
Type:
Multimode
Return Loss:
≥60dB
Wave Length:
850nm
Place Of Origin:
Shenzhen Of China
Color:
Blue
Supply Ability:
1000PCS + 1 WORK DAYS
High Light:

Multimode Fiber Patch Cord Cable

,

OM4 Fiber Patch Cord Cable

,

MPO Fiber Optic Trunk Cable

Product Description

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable

Product Description

The MPO/MTP patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.



MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



Features
  • Different fiber sequences and different key configurations are optional.

  • Available in SM (9/125), MM (50 or 62.5/125), OM3 and OM4 fiber types.

  • Available in 8/12/24 fibers.

  • Ribbon ,Ruggedized or fan-out cord is available

  • LSZH, PVC,OFNR and OFNP rated jacket are optional.

  • Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements

specification

Connector Performance Specifications

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color

Standard (green),

Elite (Yellow)

Standard(Beige)

Elite(Auqa)

Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm



Fiber Cable Perfomance Specifications

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter 3.0mm 5.5mm or customized
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Tensile Strength 500N
Operating Temperature -20 to 70 ℃
Storage Temperature -40 to 75℃



Applications
  1. Data center infrastructure
  2. Storage area network
  3. Emerging 40 and 100Gbps protocols
  4. Premise installations
  5. Gigabit Ethernet
  6. Parallel Optics
  7. Video and military active device termination

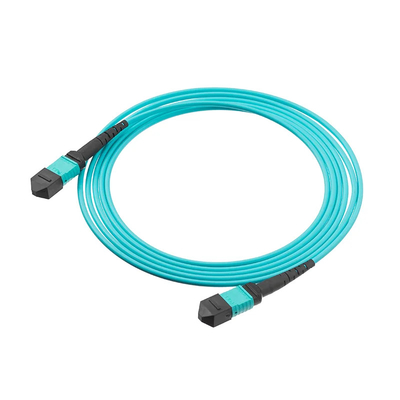

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable 0

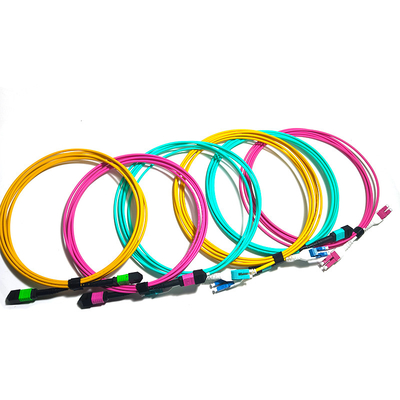

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable 1

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable 2

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable 3

12F MPO/MTP Male/Female Multimode OM4 Fiber Patch Cord Cable MPO Fiber Optic Trunk Cable 4
