MPO/PC 12 Core OM4 Fiber Patch Cord MPO Fiber Optic Trunk Cable

MOQ:	50PCS
Price:	Negotiable
Standard Packaging:	Carton, PE, Customized
Delivery Period:	10-15 DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	1000PCS + 1 WORK DAYS

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen

Brand Name

Ruiara

Certification

SGS/REACH

Model Number

TS0026

Model Number:

MPO/PC- OM4 Fiber Patch Cord

Connector:

MPO/PC

Material:

Product Name:

Optical Patch Chord

Fiber Count:

12 Core

Length:

3m, 5m, Or Customized

Connector A:

MPO/MTP Male/Female

Cable Jacket:

OFNR, OFNP, PVC, LSZH

Outer Sheath Material:

Outer Sheath Material

Type:

Multimode

Return Loss:

≥60dB

Wave Length:

850nm

Place Of Origin:

Shenzhen Of China

Color:

Red Or Customize

Highlight:

12 Core OM4 Fiber Patch Cord

MPO/PC Fiber Optic Trunk Cable

MPO Fiber Optic Trunk Cable

Product Description

1M Multimode Trunk Cable 8/12/24f LC OM3/OM4 MPO MTP Fiber Optical Patch Cord

MPO / MTP Optical Patch Cord

Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised

of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination

of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent

long-term mechanical and optical performance.

Features

MPO connector complied with IEC-61754-7

A quick-to-deploy

Scalable solution

High compatibility,flexibility&system performance

Lower installation cost

Applications

SAN (Storage area Network)data center LAN

LAN/SAN switch equipment distribution area(EDA)

Emerging 40G and 100G protocol

MPO Connector		Standard SM MT Ferrule		Low Loss SM MT Ferrule		Standard MM MT Ferrule	Low Loss MM MT Ferrule
Polish		APC	PC	APC	PC	PC	PC
Insertion Loss(dB)	Typical	0.50	0.50	0.30	0.30	0.50	0.30
	Maximun	0.70	0.70	0.50	0.50	0.70	0.50
Return Loss(dB)		60	45	60	45	20	20
Exchangeability(dB)		≤0.3
Durability(dB)		≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength(dB)		≤0.3dB (Max 66N)
Operating temperature(℃)		-20~+60
Storage temperature(℃)		-40~+80

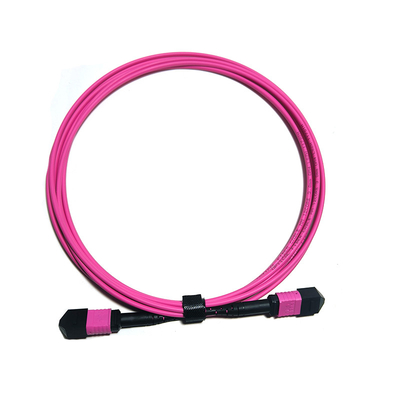

MPO/PC 12 Core OM4 Fiber Patch Cord MPO Fiber Optic Trunk Cable 4

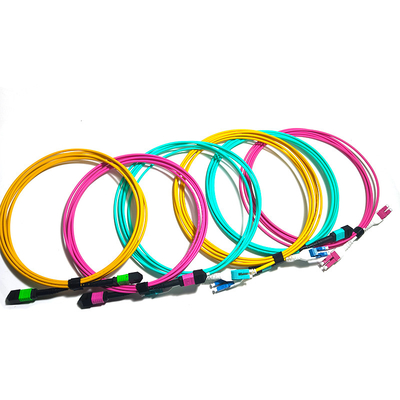

MPO/PC 12 Core OM4 Fiber Patch Cord MPO Fiber Optic Trunk Cable 5
