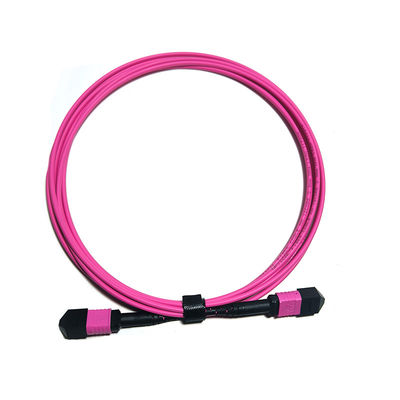

12F MPO PC MPO PC Fiber Optic Patch Cord
  • name
  • name
  • name
  • name

12F MPO PC MPO PC Fiber Optic Patch Cord

MOQ: 50PCS
Price: Negotiable
Standard Packaging: Carton, PE, Customized
Delivery Period: 10-15 DAYS
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 1000PCS + 1 WORK DAYS
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen
Brand Name
Ruiara
Certification
SGS/REACH
Model Number
TS0026
Model Number:
MPO/PC-MPO/PC-3.0-12F-MM Patch Cord
Connector:
MPO/PC
Material:
LSZH
Product Name:
Optical Patch Chord
Fiber Count:
12 Core
Size:
3.0mm
Network:
Bluetooth, Wifi, Other
Use/Application:
FTTX,FTTH
Outer Sheath Material:
Outer Sheath Material
Type:
Multimode
Insertion Loss, Typical:
≤ 0.10 DB
Insertion Loss, Max:
≤ 0.35 DB
Length:
Customization
Place Of Origin:
Shenzhen Of China
Color:
Blue, Red, Yellow
Highlight:

12F MPO PC OM3 Patch Cord

,

3.0mm MPO PC OM3 Patch Cord

,

3M MPO PC OM3 Patch Cord

Product Description

Manufacturing 12F MPO PC MPO PC OM3 3.0 3M Type B 3.0mm OM3-300 Fiber Optic Patch Cord



About this item:

MTP / MPO patchcords are designed to high density multifibers solutions,fit for different installation environment and easy to in-stall between the trunk line,data centers and buildings.Our patchcord are 100% factory tested and can meet your special requirements.All the MTP/MPO connectors comply with Telcordia GR-1435-Core Compliant.



Features:

MTP and MPO are available High performance in IL&RL 100%pre-terminated tested Pulling eye design is easy for cabling .4F.8F,12F,24F,48F.72F,96F,144F or customized.





Quick Details:

  1. Name: MPO fiber patch cord
  2. Ferrule End-face: PC, UPC, APC
  3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
  4. Cable core: 4core, 6core, 8core, 12core, 24core
  5. Cable Type: 12 single fiber, Flat, Round
  6. Adopt MPO/MTP single 12fiber pull/push connectors

Desciption:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features:

  1. Single mode and Multimode (Flat/Round) available
  2. High fiber density (maximum 24 fibers)
  3. Fiber in single connector: 4, 8, 12 24
  4. Insert/Pull latching connector
  5. High reflection loss with APC

  6. small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.

Applications:

  1. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
  2. Active Device Termination
  3. Premise Installations
  4. Telecommunication and Data processing Networks

  5. Video transmission , Data transmission

Specification:
Fiber Connector

Connector Type Fiber MPO/MTP (non-pinned)
Ferrule of end-face UPC(MM); APC(SM)
Housing Color MM (Beige), MM Elite (Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB

Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 12, 24, 48, 72, 96, 144 cores
Cable Outer diameter 12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Color OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C



12F MPO PC MPO PC Fiber Optic Patch Cord

12F MPO PC MPO PC Fiber Optic Patch Cord
