Fiber Optic Patch Cord
>
Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net

Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net

Brand Name: Ruiara
Model Number: TS0026
MOQ: 50PCS
Price: Negotiable
Packaging Details: Carton, PE, Customized
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detail Information
Place of Origin:
Shenzhen
Certification:
SGS/REACH
Model Number:
MPO/PC-MPO/PC-3.0-12F-MM Patch Cord
Connector:
MPO/PC
Material:
LSZH
Product Name:
Optical Patch Chord
Fiber Count:
12 Core
Size:
3.0mm
Network:
Bluetooth, Wifi, Other
Use/Application:
FTTX,FTTH
Outer Sheath Material:
Outer Sheath Material
Type:
Multimode
Insertion Loss, Typical:
≤ 0.10 DB
Insertion Loss, Max:
≤ 0.35 DB
Length:
Customization
Place Of Origin:
Shenzhen Of China
Color:
Blue
Supply Ability:
1000PCS + 1 WORK DAYS
High Light:

3m TOSLINK Optical Audio Cable

,

1m TOSLINK Optical Audio Cable

,

1m toslink cable

Product Description

Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net



Product details

Product name MPO OM3 Patch Cords
Pre-Terminated Connector MPO MTP
Polished UPC or APC
Fiber Count 8 Fibers 12 Fibers 16 Fibers 24 Fibers
Fiber Mode OM3-150 OM3-300
Jacket Color Yellow Color
Jaket Material PVC, LSZH
Insertion Loss Standard 0.7dB Low Loss <0.35dB
Return Loss >50db
Warranty Limited Life
Product Keywords MPO 12 Strand Female ,MPO Multi-Fiber Patch Cable,MTP Multi-Fiber Patch Cable

Description:

The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic patch cable manufacturer. We supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the traditional fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting high data rates, such as 10-Gigabit, 40-Gigabit Ethernet, and 100-Gigabit Ethernet.

Choose Your Polarity:

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.

Specification:

Factory-terminated provides consistent quality, high performance, and reduced installation time
• 100% tested for low insertion loss performance and high back reflection
• Fiber Count: 12 fiber trunk cable
• Laser-Optimized multimode OM4 fiber
• Type B polarity, used for 40G QSFP eSR4 and 100G QSFP28 SR4 optics
• Optimized performance – available in elite MTP and discrete premium connector upon request
• LSZH Jacket by Default

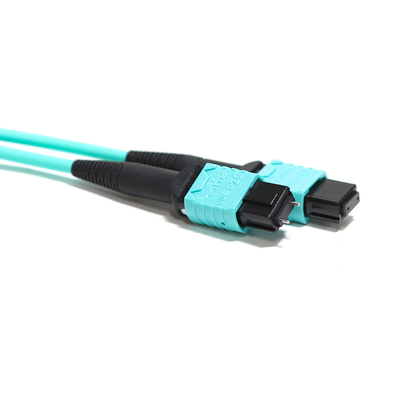

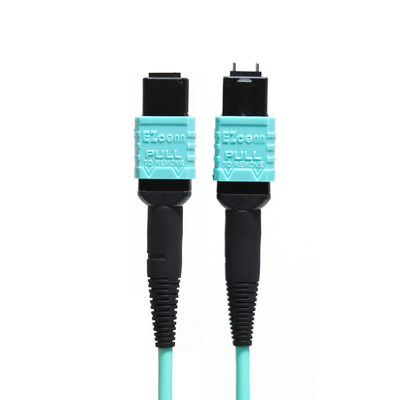

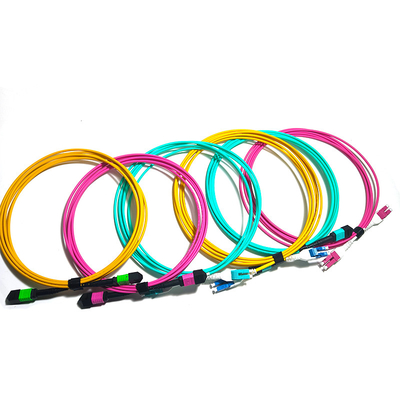

Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net 0Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net 1Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net 2

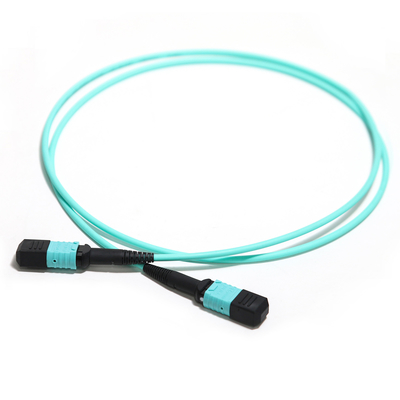

Factory Outlet MTP/MPO Optical Patch Chord Blue OM3 Duplex GR-1435-Core For WLAN Net 3
